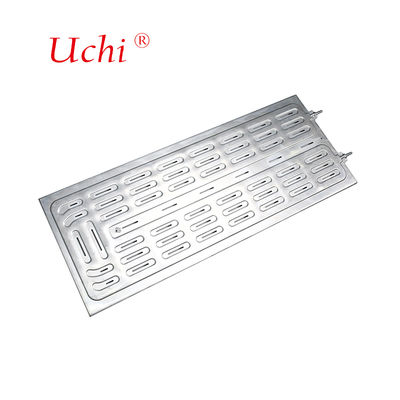

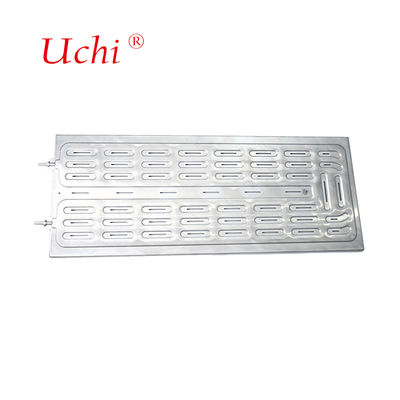

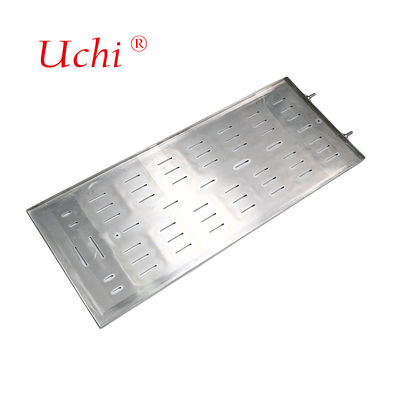

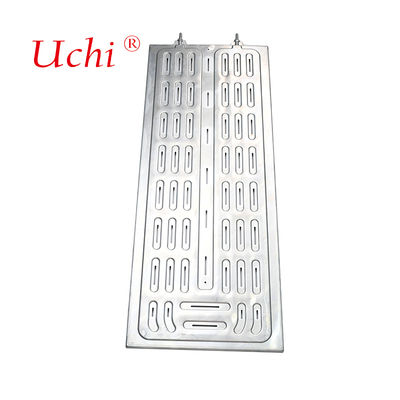

Battery Ess Aluminum Cold Plate Water Cold Liquid Cooling Braze Evaporator Fluid-cooled Plate
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan, Guangdong, Chiny |
| Nazwa handlowa: | Uchi |
| Orzecznictwo: | SMC |
| Numer modelu: | Płyta chłodzona cieczą 200 |
Zapłata:
| Minimalne zamówienie: | 100pcs |
|---|---|
| Cena: | negocjowalne |
| Zasady płatności: | T/T, PayPal, Western Union, MoneyGram |
| Możliwość Supply: | 50000000 pCS miesięcznie |
|
Szczegóły informacji |
|||
| Chropowatość powierzchni: | 1,2 um | Kształt: | Zwyczaj |
|---|---|---|---|
| Technika klejenia: | Lutowanie próżniowe | Płyn: | Woda lub odpowiedni płyn chłodzący |
| Obowiązujące branże: | SKLEPY MASZYNY, Energia i wydobycie | Tworzywo: | Stop aluminium |
| Płaskość powierzchni: | Poniżej 0,005 cm/cm | Ciśnienie robocze: | 1,2 do 5 barów |
| Rozmiar pojedynczego pakietu: | 40X30X25 cm | Pojedyncza waga brutto: | 9.900 kg |
| Podkreślić: | aluminum liquid cooling plate,braze evaporator cold plate,fluid-cooled battery cooling plate |
||
opis produktu
Battery Ess Aluminum Cold Plate Water Cooling System
This Large size EV battery pack liquid cold cooling plate is made of high-quality aluminum alloy, ensuring efficient cooling with a capacity of 200W. It features a surface flatness below 0.005 cm/cm and a smooth surface roughness of 1.2 um, suitable for high-heat applications like EV power battery cooling, lasers, and IGBT modules. The product undergoes rigorous testing including helium leak detection, thermal shock, and flow resistance tests to ensure reliability. Certified with CE, it complies with EU safety standards, providing market access assurance for buyers.
Product Specifications
| No. | Item Description | Content |
|---|---|---|
| 1 | Material | Aluminum alloy (3003, 6061, 6063) |
| 2 | Dimension (L×W×H) | 120×40×12 mm |
| 3 | Cooling capacity | 200 W |
| 4 | Surface roughness | Ra 3.2 μm |
| 5 | Flatness | 0.1 mm |
| 6 | Working Pressure | Minimum 1 bar |
| 7 | Joining Method | Brazing, welding or suitable techniques |
| 8 | Manufacturing technique | CNC machining, extrusion or suitable processes |
| 9 | Recommended Coolants | Deionized Water, Inhibited Glycol/Water, Dielectric fluid |
| 10 | Surface finish | Mill finish, anodization or chemical coating |
| 11 | Place of Origin | China |
| 12 | Packing | Carton box or plywood case with protective films |
Our cold plates are widely used in many more High Power and High Heat Flux applications:
Lasers;
Medical equipment;
EV power battery pack cooling;
Power electronics;
Motor drive devices;
Microwave 5G transmission;
Renewable energy system;
IGBT and Power Semi-Conductor Systems;
Data Centres;
Industrial Power Applications;
Defence Systems;
Avionics;
Fuel Cells;
Traction Systems;
Production Capabilities
25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
