Wyroby z materiałów chemicznych, w których nie występuje żar
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan Chiny |
| Nazwa handlowa: | UCHI |
| Orzecznictwo: | Completed |
| Numer modelu: | 25S102 |
Zapłata:
| Minimalne zamówienie: | 1000 sztuk |
|---|---|
| Cena: | negocjowalne |
| Szczegóły pakowania: | Standardowy |
| Czas dostawy: | 3 tygodnie |
| Zasady płatności: | T/T, Western Union |
| Możliwość Supply: | 5000 sztuk |
|
Szczegóły informacji |
|||
| Podkreślić: | 25S102 Varystor tlenku metalu z bezpieczników termicznych,TFMOV Varistor z tlenkiem metalu z bezpiecznikiem termicznym,25S112KIT Varistor z tlenkiem metalowym bezpiecznika termicznego |
||
|---|---|---|---|
opis produktu
Cechy
● Ten produkt jest wyposażony we wbudowaną funkcję pomiaru temperatury
bezpiecznik, który można odłączyć w przypadku warystora
bliski awarii, chroniąc obwód i zapobiegając mu
przed zapaleniem się lub pęknięciem. Można go wyposażyć
zdalna sygnalizacja (IT) i sygnalizacja awarii.
● Zgodny ze specyfikacjami ROSH i bezhalogenowy
specyfikacje.
● Temperatura działania: 136C
● Zakres napięcia roboczego: 17Vac-750Vac
● Zakres temperatury pracy: -40 ℃ -+85 ℃
●Certyfikat bezpieczeństwa: UL w Stanach Zjednoczonych, TUV w Niemczech i
CQC
● Nadaje się do lutowania na fali
Aplikacje
● Nowa Energia
● Moduł TVSS
● Inwerter fotowoltaiczny
● Magazynowanie energii
● Zasilanie
● Oświetlenie
● Sprzęt komunikacyjny
● Kontrola przemysłowa
● Sprzęt AGD
● Zasilanie stacji bazowej 5G
● Zasilanie UPS

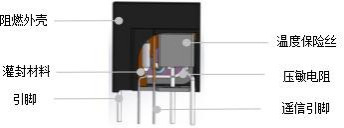

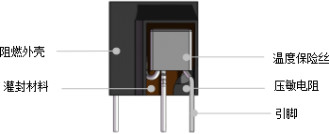

Struktura i wymiary
●10 s Szereg
Pin P3 opcjonalny, jednostka: (mm)
|
标称电压 Vn |
L(±1,0) | L1(±1,0) | W(±1,0) | H(±1,0) | d(-0,05,±1,0) | F1(±0,5) | F2(±0,5) | F3(±0,5) | F4(±0,5) | F5(±0,5) | F6(±0,5) |
| 820 ~ 151 | 15 | 7 | 8.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 6.4 |
| 181~271 | 15 | 7 | 9.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 7.4 |
| 301 ~ 471 | 15 | 7 | 10.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 8.4 |
| 511 ~ 621 | 15 | 7 | 11.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 9.4 |
| 681 ~ 821 | 15 | 7 | 12.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 10.4 |
| 911 ~ 122 | 15 | 7 | 13.6 | 14 | 0,8 | 1.1 | 5.3 | 11.8 | 1.1 | 3.3 | 11.4 |
●15 S Szereg
Pin P3 opcjonalny, jednostka: (mm)
|
标称电压 Vn |
L(±1,0) | L1(±1,0) | W(±1,0) | H(±1,0) | d(-0,05,±1,0) | F1(±0,5) | F2(±0,5) | F3(±0,5) | F4(±0,5) | F5(±0,5) | F6(±0,5) |
| 820 ~ 151 | 18,5 | 7 | 8,0 | 17 | 0,9 | 1.2 | 5.4 | 14.6 | 1.2 | 3.0 | 5.6 |
| 181~271 | 18,5 | 7 | 9,0 | 17 | 0,9 | 1.1 | 5.4 | 14.6 | 1.2 | 3.0 | 6.6 |
| 301 ~ 471 | 18,5 | 7 | 10.2 | 17 | 0,9 | 1.1 | 5.4 | 14.6 | 1.2 | 3.0 | 7.8 |
| 511 ~ 621 | 18,5 | 7 | 11.4 | 17 | 0,9 | 1.1 | 5.4 | 14.6 | 1.2 | 3.0 | 9,0 |
| 681 ~ 821 | 18,5 | 7 | 12.6 | 17 | 0,9 | 1.1 | 5.4 | 14.6 | 1.2 | 3.0 | 10.2 |
| 911 ~ 122 | 18,5 | 7 | 13.6 | 17 | 0,9 | 1.1 | 5.4 | 14.6 | 1.2 | 3.0 | 11.2 |
●20S Szereg
Pin P3/P4/P5 opcjonalny, jednostka: (mm)
|
标称电压 Vn |
L(±1,0) | L1(±1,0) | W(±1,0) | H(±1,0) | F1(±0,5) | F2(±0,5) | F3(±0,5) | F4(±0,5) | F5(±0,5) | F6(±0,5) | F7±0,5) | F8±0,5) | F9±0,5) | d1/d2 (±0,05) |
| 820 ~ 121 | 23.2 | 8,0 | 9.1 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 6.7 | 1,05/0,5 |
| 151~271 | 23.2 | 8,0 | 9,5 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 7.1 | 1,05/0,5 |
| 301 ~ 471 | 23.2 | 8,0 | 11 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 8.6 | 1,05/0,5 |
| 511 ~ 681 | 23.2 | 8,0 | 12 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 9.6 | 1,05/0,5 |
| 751 ~ 821 | 23.2 | 8,0 | 13 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 10.6 | 1,05/0,5 |
| 911 ~ 122 | 23.2 | 8,0 | 15,5 | 22.8 | 1.4 | 5.5 | 10.3 | 14.3 | 19.8 | 1.4 | 1.2 | 3.3 | 13.1 | 1,05/0,5 |
●25 S Szereg
Pin P3/P4/P5 opcjonalny, jednostka: (mm)
|
标称电压 Vn |
L(±1,0) | L1(±1,0) | W(±1,0) | H(±1,0) | F1(±0,5) | F2(±0,5) | F3(±0,5) | F4(±0,5) | F5(±0,5) | F6(±0,5) | F7±0,5) | F8±0,5) | F9±0,5) | d1/d2 (±0,05) |
| 270 ~ 121 | 25.3 | 9,0 | 9.4 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 6.9 | 1,2/0,5 |
| 151~271 | 25.3 | 9,0 | 9,8 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 7.3 | 1,2/0,5 |
| 301 ~ 471 | 25.3 | 9,0 | 11.3 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 8.8 | 1,2/0,5 |
| 511 ~ 681 | 25.3 | 9,0 | 12.3 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 9,8 | 1,2/0,5 |
| 751 ~ 821 | 25.3 | 9,0 | 13.3 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 10.8 | 1,2/0,5 |
| 911 ~ 122 | 25.3 | 9,0 | 15.8 | 28 | 1,5 | 5.6 | 11.2 | 15.2 | 21,5 | 1,5 | 1.3 | 3.3 | 13.3 | 1,2/0,5 |
●34S Szereg
Pin P3/P4/P5 opcjonalny, jednostka: (mm)
|
标称电压 Vn |
L(±1,0) | L1(±1,0) | W(±1,0) | H(±1,0) | F1(±0,5) | F2(±0,5) | F3(±0,5) | F4(±0,5) | F5(±0,5) | F6(±0,5) | F7±0,5) | F8±0,5) | F9±0,5) | d1/d2 (±0,05) |
| 470 ~ 121 | 37,6 | 10 | 10 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 6.9 | 1,7/1,05 |
| 151~271 | 37,6 | 10 | 10,5 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 7.4 | 1,7/1,05 |
| 301 ~ 471 | 37,6 | 10 | 12 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 8.9 | 1,7/1,05 |
| 511 ~ 681 | 37,6 | 10 | 12.8 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 9.7 | 1,7/1,05 |
| 751 ~ 821 | 37,6 | 10 | 14 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 10.9 | 1,7/1,05 |
| 911 ~ 122 | 37,6 | 10 | 16,5 | 37 | 1.8 | 12.1 | 17.1 | 21.1 | 27,5 | 1.8 | 1,5 | 3.3 | 13.4 | 1,7/1,05 |
Schemat elektryczny
Elektryczny cechy
TFMOV10S Szereg
|
Typ |
Wartość ruchu (@ 1mA prądu stałego) |
Maksymalne dopuszczalne napięcie |
Maksymalne napięcie zaciskania
(8/20μs) |
Wytrzymuje prąd udarowy (8/20μs) |
Moc znamionowa |
Energia
(10/1000μs) |
|||
| V1mA | VAC (wartość skuteczna) | Vdc | wiceprezes | IP | Imaks | P | Wmaks | ||
| (W) | (W) | (W) | (W) | (A) | (KA) | (W) | (J) | ||
| TFMOV10S820K | 82(74-90) | 50 | 65 | 135 | 50 | 3 | 0,4 | 30 | |
| TFMOV10S101K | 100(90-110) | 60 | 85 | 165 | 50 | 3 | 0,4 | 35 | |
| TFMOV10S121K | 120(108-132) | 75 | 100 | 200 | 50 | 3 | 0,4 | 42 | |
| TFMOV10S151K | 150(135-165) | 95 | 125 | 250 | 50 | 6 | 0,6 | 53 | |
| TFMOV10S181K | 180(162-198) | 115 | 150 | 300 | 50 | 6 | 0,6 | 74 | |
| TFMOV10S201K | 200 (180~220) | 130 | 170 | 340 | 50 | 6 | 0,6 | 77 | |
| TFMOV10S221K | 220 (198~242) | 140 | 180 | 365 | 50 | 6 | 0,6 | 86 | |
| TFMOV10S241K | 240 (216~264) | 150 | 200 | 395 | 50 | 6 | 0,6 | 94 | |
| TFMOV10S271K | 270 (243~297) | 175 | 225 | 455 | 50 | 6 | 0,6 | 110 | |
| TFMOV10S301K | 300 (270~330) | 195 | 250 | 500 | 50 | 6 | 0,6 | 118 | |
| TFMOV10S331K | 330 (297~363) | 215 | 275 | 550 | 50 | 6 | 0,6 | 127 | |
| TFMOV10S361K | 360 (324~396) | 230 | 300 | 595 | 50 | 6 | 0,6 | 137 | |
| TFMOV10S391K | 390 (351~429) | 250 | 320 | 650 | 50 | 6 | 0,6 | 154 | |
| TFMOV10S431K | 430 (387~473) | 275 | 350 | 710 | 50 | 6 | 0,6 | 170 | |
| TFMOV10S471K | 470 (423~517) | 300 | 385 | 775 | 50 | 6 | 0,6 | 192 | |
| TFMOV10S511K | 510 (459~561) | 320 | 410 | 845 | 50 | 6 | 0,6 | 209 | |
| TFMOV10S561K | 560 (504~616) | 350 | 450 | 930 | 50 | 6 | 0,6 | 220 | |
| TFMOV10S621K | 620 (558~682) | 395 | 510 | 1025 | 50 | 6 | 0,6 | 231 | |
| TFMOV10S681K | 680 (612~748) | 420 | 560 | 1120 | 50 | 6 | 0,6 | 242 | |
| TFMOV10S751K | 750 (675~825) | 465 | 615 | 1240 | 50 | 6 | 0,6 | 247 | |
| TFMOV10S781K | 780 (702~858) | 485 | 640 | 1290 | 50 | 6 | 0,6 | 260 | |
| TFMOV10S821K | 820 (738~902) | 510 | 670 | 1355 | 50 | 6 | 0,6 | 270 | |
| TFMOV10S911K | 910 (819~1001) | 550 | 745 | 1500 | 50 | 6 | 0,6 | 280 | |
| TFMOV10S951K | 950 (855~1045) | 575 | 765 | 1570 | 50 | 6 | 0,6 | 290 | |
| TFMOV10S102K | 1000(900-1100) | 625 | 825 | 1650 | 50 | 6 | 0,6 | 305 | |
| TFMOV10S112K | 1100(990~1210 | 680 | 895 | 1815 | 50 | 6 | 0,6 | 340 | |
TFMOV15S Szereg
|
Typ |
Wartość ruchu (@ 1mA prądu stałego) |
Maksymalne dopuszczalne napięcie |
Maksymalne napięcie zaciskania (8/20μs) |
Wytrzymuje prąd udarowy (8/20μs) |
Moc znamionowa |
Energia (10/1000μs) |
|||
| V1mA | VAC (wartość skuteczna) | Vdc | wiceprezes | IP | Imaks | P | Wmaks | ||
| (W) | (W) | (W) | (W) | (A) | (KA) | (W) | (J) | ||
| TFMOV15S820K | 82(74-90) | 50 | 65 | 135 | 75 | 5 | 0,6 | 43 | |
| TFMOV15S101K | 100(90-110) | 60 | 85 | 165 | 75 | 5 | 0,6 | 53 | |
| TFMOV15S121K | 120(108-132) | 75 | 100 | 200 | 75 | 5 | 0,6 | 64 | |
| TFMOV15S151K | 150(135-165) | 95 | 125 | 250 | 75 | 10 | 1,0 | 85 | |
| TFMOV15S181K | 180(162-168) | 115 | 150 | 300 | 75 | 10 | 1,0 | 96 | |
| TFMOV15S201K | 200(180~220) | 130 | 170 | 340 | 75 | 10 | 1,0 | 102 | |
| TFMOV15S221K | 220(198~242) | 140 | 180 | 365 | 75 | 10 | 1,0 | 125 | |
| TFMOV15S241K | 240(216~264) | 150 | 200 | 395 | 75 | 10 | 1,0 | 134 | |
| TFMOV15S271K | 270(243~297) | 175 | 225 | 455 | 75 | 10 | 1,0 | 158 | |
| TFMOV15S301K | 300(270~330) | 195 | 250 | 500 | 75 | 10 | 1,0 | 173 | |
| TFMOV15S331K | 330(297~363) | 215 | 275 | 550 | 75 | 10 | 1,0 | 185 | |
| TFMOV15S361K | 360(324~396) | 230 | 300 | 595 | 75 | 10 | 1,0 | 208 | |
| TFMOV15S391K | 390(351~429) | 250 | 320 | 650 | 75 | 10 | 1,0 | 224 | |
| TFMOV15S431K | 430(387~473) | 275 | 350 | 710 | 75 | 10 | 1,0 | 248 | |
| TFMOV15S471K | 470(423~517) | 300 | 385 | 775 | 75 | 10 | 1,0 | 280 | |
| TFMOV15S511K | 510(459~561) | 320 | 410 | 845 | 75 | 10 | 1,0 | 300 | |
| TFMOV15S561K | 560(504~616) | 350 | 450 | 930 | 75 | 10 | 1,0 | 310 | |
| TFMOV15S621K | 620(558~682) | 395 | 510 | 1025 | 75 | 10 | 1,0 | 310 | |
| TFMOV15S681K | 680(612~748) | 420 | 560 | 1120 | 75 | 10 | 1,0 | 320 | |
| TFMOV15S751K | 750(675~825) | 465 | 615 | 1240 | 75 | 10 | 1,0 | 335 | |
| TFMOV15S781K | 780(702~858) | 485 | 640 | 1290 | 75 | 10 | 1,0 | 350 | |
| TFMOV15S821K | 820(738~902) | 510 | 670 | 1355 | 75 | 10 | 1,0 | 400 | |
| TFMOV15S911K | 910 (819~1001) | 550 | 745 | 1500 | 75 | 10 | 1,0 | 450 | |
| TFMOV15S951K | 950 (855~1045) | 575 | 765 | 1570 | 75 | 10 | 1,0 | 500 | |
| TFMOV15S102K | 1000 (900~1100) | 625 | 825 | 1650 | 75 | 10 | 1,0 | 560 | |
| TFMOV15S112K | 1100 (990~1210) | 680 | 895 | 1815 | 75 | 10 | 1,0 | 610 | |
TFMOV20SSzereg
|
Typ |
Wartość ruchu |
Maksymalny |
Maksymalne napięcie zaciskania | Wytrzymać |
Oceniono |
Energia |
||||
| Prąd udarowy | ||||||||||
| (@ 1mA prądu stałego) | Dopuszczalne napięcie | (8/20μs) | (8/20μs) | Moc | (10/1000μs) | |||||
| V1mA | VAC (wartość skuteczna) | Vdc | wicep | IP | Imaks | P | Wmaks | |||
| (W) | (W) | (W) | (W) | (A) | (KA) | (W) | (J) | |||
| TFMOV20S270K | 27(24-31) | 17 | 22 | 53 | 25 | 3 | 0,4 | 23 | ||
| TFMOV20S330K | 33(30-36) | 20 | 26 | 65 | 25 | 3 | 0,4 | 29 | ||
| TFMOV20S390K | 39(35-43) | 25 | 31 | 77 | 25 | 3 | 0,4 | 33,5 | ||
| TFMOV20S470K | 47(42-52) | 30 | 38 | 93 | 25 | 5 | 0,6 | 41 | ||
| TFMOV20S560K | 56(50-62) | 35 | 45 | 110 | 25 | 5 | 0,6 | 49 | ||
| TFMOV20S680K | 68(61-75) | 40 | 56 | 135 | 25 | 5 | 0,6 | 59 | ||
| TFMOV20S820K | 82(74-90) | 50 | 65 | 135 | 150 | 20 | 1,0 | 67 | ||
| TFMOV20S101K | 100(90-110) | 60 | 85 | 165 | 150 | 20 | 1,0 | 84 | ||
| TFMOV20S121K | 120(108-132) | 75 | 100 | 200 | 150 | 20 | 1,0 | 102 | ||
| TFMOV20S151K | 150(135-165) | 95 | 125 | 250 | 150 | 20 | 1,0 | 127 | ||
| TFMOV20S181K | 180(162-198) | 115 | 150 | 300 | 150 | 20 | 1,0 | 156 | ||
| TFMOV20S201K | 200 | (180~220) | 130 | 170 | 340 | 150 | 20 | 1,0 | 170 | |
| TFMOV20S221K | 220 | (198~242) | 140 | 180 | 360 | 150 | 20 | 1,0 | 185 | |
| TFMOV20S241K | 240 | (216~264) | 150 | 200 | 395 | 150 | 20 | 1,0 | 200 | |
| TFMOV20S271K | 270 | (243~297) | 175 | 225 | 455 | 150 | 20 | 1,0 | 285 | |
| TFMOV20S301K | 300 | (270~330) | 195 | 250 | 500 | 150 | 20 | 1,0 | 310 | |
| TFMOV20S331K | 330 | (297~363) | 215 | 275 | 550 | 150 | 20 | 1,0 | 325 | |
| TFMOV20S361K | 360 | (324~396) | 230 | 300 | 595 | 150 | 20 | 1,0 | 340 | |
| TFMOV20S391K | 390 | (351~429) | 250 | 320 | 650 | 150 | 20 | 1,0 | 360 | |
| TFMOV20S431K | 430 | (387~473) | 275 | 350 | 710 | 150 | 20 | 1,0 | 440 | |
| TFMOV20S471K | 470 | (423~517) | 300 | 385 | 775 | 150 | 20 | 1,0 | 490 | |
| TFMOV20S511K | 510 | (459~561) | 320 | 410 | 845 | 150 | 20 | 1,0 | 530 | |
| TFMOV20S561K | 560 | (504~616) | 350 | 450 | 930 | 150 | 20 | 1,0 | 560 | |
| TFMOV20S621K | 620 | (558~682) | 395 | 510 | 1025 | 150 | 20 | 1,0 | 590 | |
| TFMOV20S681K | 680 | (612~748) | 420 | 560 | 1120 | 150 | 20 | 1,0 | 620 | |
| TFMOV20S751K | 750 | (675~825) | 465 | 615 | 1240 | 150 | 20 | 1,0 | 630 | |
| TFMOV20S781K | 780 | (702~858) | 485 | 640 | 1290 | 150 | 20 | 1,0 | 675 | |
| TFMOV20S821K | 820(738~902) | 510 | 670 | 1355 | 150 | 20 | 1,0 | 690 | ||
| TFMOV20S911K | 910 (819~1001) | 550 | 745 | 1500 | 150 | 20 | 1,0 | 715 | ||
| TFMOV20S951K | 950 (855~1045) | 575 | 765 | 1570 | 150 | 20 | 1,0 | 740 | ||
| TFMOV20S102K | 1000 (900~1100) | 625 | 825 | 1650 | 150 | 20 | 1,0 | 770 | ||
| TFMOV20S112K | 1100(990-1200) | 680 | 895 | 1815 | 150 | 20 | 1,0 | 840 | ||
| TFMOV20S122K | 1200(1080-1320) | 680 | 895 | 1815 | 150 | 20 | 1,0 | 840 | ||
TFMOV25S Szereg
|
Typ |
Wartość ruchu
(@ 1mA prądu stałego) |
Maksymalne dopuszczalne napięcie |
Maksymalne napięcie zaciskania
(8/20μs) |
Wytrzymuje prąd udarowy (8/20μs) |
Moc znamionowa |
Energia
(10/1000μs) |
|||
| V1mA | VAC (wartość skuteczna) | Vdc | wiceprezes | IP | Imaks | P | Wmaks | ||
| (W) | (W) | (W) | (W) | (A) | (KA) | (W) | (J) | ||
| TFMOV25S270K | 27(24-31) | 17 | 22 | 53 | 35 | 6 | 0,5 | 33 | |
| TFMOV25S330K | 33(30-36) | 20 | 26 | 65 | 35 | 8 | 0,6 | 42 | |
| TFMOV25S390K | 39(35-43) | 25 | 31 | 77 | 25 | 8 | 0,6 | 49 | |
| TFMOV25S470K | 47(42-52) | 30 | 38 | 93 | 25 | 8 | 0,6 | 60 | |
| TFMOV25S560K | 56(50-62) | 35 | 45 | 110 | 25 | 10 | 0,7 | 72 | |
| TFMOV25S680K | 68(61-75) | 40 | 56 | 135 | 25 | 10 | 0,7 | 85 | |
| TFMOV25S820K | 82(74-90) | 50 | 65 | 135 | 175 | 16 | 0,8 | 98 | |
| TFMOV25S101K | 100(90-110) | 60 | 85 | 165 | 175 | 16 | 0,8 | 122 | |
| TFMOV25S121K | 121(108-132) | 75 | 100 | 200 | 175 | 16 | 0,8 | 146 | |
| TFMOV25S151K | 151(135-165) | 95 | 125 | 250 | 175 | 16 | 0,8 | 185 | |
| TFMOV25S181K | 181(162-198) | 115 | 150 | 300 | 175 | 16 | 0,8 | 218 | |
| TFMOV25S201K | 200 (180~220) | 130 | 170 | 340 | 175 | 25 | 1.4 | 252 | |
| TFMOV25S221K | 220 (198~242) | 140 | 180 | 360 | 175 | 25 | 1.4 | 280 | |
| TFMOV25S241K | 240 (216~264) | 150 | 200 | 395 | 175 | 25 | 1.4 | 302 | |
| TFMOV25S271K | 270 (243~297) | 175 | 225 | 455 | 175 | 25 | 1.4 | 340 | |
| TFMOV25S301K | 300 (270~330) | 195 | 250 | 500 | 175 | 25 | 1.4 | 375 | |
| TFMOV25S331K | 330 (297~363) | 215 | 275 | 550 | 175 | 25 | 1.4 | 410 | |
| TFMOV25S361K | 360 (324~396) | 230 | 300 | 595 | 175 | 25 | 1.4 | 465 | |
| TFMOV25S391K | 390 (351~429) | 250 | 320 | 650 | 175 | 25 | 1.4 | 520 | |
| TFMOV25S431K | 430 (387~473) | 275 | 350 | 710 | 175 | 25 | 1.4 | 575 | |
| TFMOV25S471K | 470 (423~517) | 300 | 385 | 775 | 175 | 25 | 1.4 | 630 | |
| TFMOV25S511K | 510 (459~561) | 320 | 410 | 845 | 175 | 25 | 1.4 | 665 | |
| TFMOV25S561K | 560 (504~616) | 350 | 450 | 930 | 175 | 25 | 1.4 | 720 | |
| TFMOV25S621K | 620 (558~682) | 395 | 510 | 1020 | 175 | 25 | 1.4 | 790 | |
| TFMOV25S681K | 680 (612~748) | 420 | 560 | 1120 | 175 | 25 | 1.4 | 790 | |
| TFMOV25S751K | 750 (675~825) | 465 | 615 | 1235 | 175 | 25 | 1.4 | 825 | |
| TFMOV25S781K | 780 (702~858) | 485 | 640 | 1290 | 175 | 25 | 1.4 | 825 | |
| TFMOV25S821K | 820 (738~902) | 510 | 670 | 1355 | 175 | 25 | 1.4 | 840 | |
| TFMOV25S911K | 910 (819~1001) | 550 | 745 | 1500 | 175 | 25 | 1.4 | 900 | |
| TFMOV25S951K | 950 (855~1045) | 575 | 765 | 1570 | 175 | 25 | 1.4 | 900 | |
| TFMOV25S102K | 1000 (900~1100) | 625 | 825 | 1650 | 175 | 25 | 1.4 | 950 | |
| TFMOV25S112K | 1100 (990~1210) | 680 | 895 | 1815 | 175 | 25 | 1.4 | 1040 | |
TFMOV34S Szereg
|
Typ |
Napięcie ruchu | Maksymalny | Maksymalne napięcie zaciskania | Wytrzymać | Oceniono | Energia | |||
| Prąd udarowy | |||||||||
| (@ 1mA prądu stałego) | Dopuszczalne napięcie | (8/20μs) | (8/20μs) | Moc | (10/1000μs) | ||||
| V1mA | VAC (wartość skuteczna) | Vdc | wiceprezes | IP | Imaks | P | Wmaks | ||
| (W) | (W) | (W) | (W) | (A) | (KA) | (W) | (J) | ||
| TFMOV34S270K | 27(24-31) | 17 | 22 | 53 | 45 | 20 | 1,0 | 70 | |
| TFMOV34S330K | 33(30-36) | 20 | 26 | 65 | 55 | 20 | 1,0 | 80 | |
| TFMOV34S390K | 39(35-43) | 25 | 31 | 77 | 60 | 20 | 1,0 | 86 | |
| TFMOV34S470K | 47(42-52) | 30 | 38 | 93 | 60 | 20 | 1,0 | 96 | |
| TFMOV34S560K | 56(50-62) | 35 | 45 | 110 | 60 | 20 | 1,0 | 115 | |
| TFMOV34S680K | 68(61-75) | 40 | 56 | 135 | 60 | 20 | 1,0 | 136 | |
| TFMOV34S820K | 82(74-90) | 50 | 65 | 135 | 300 | 20 | 1,0 | 156 | |
| TFMOV34S101K | 100(90-110) | 60 | 85 | 165 | 300 | 30 | 1,0 | 195 | |
| TFMOV34S121K | 121(108-132) | 75 | 100 | 200 | 300 | 30 | 1,0 | 235 | |
| TFMOV34S151K | 151(135-165) | 95 | 125 | 250 | 300 | 40 | 1.4 | 296 | |
| TFMOV34S181K | 181(162-198) | 115 | 150 | 300 | 300 | 40 | 1.4 | 350 | |
| TFMOV34S201K | 200 | (180~220) | 130 | 170 | 340 | 300 | 40 | 1.4 | 400 |
| TFMOV34S221K | 220 | (198~242) | 140 | 180 | 360 | 300 | 40 | 1.4 | 450 |
| TFMOV34S241K | 240 | (216~264) | 150 | 200 | 395 | 300 | 40 | 1.4 | 480 |
| TFMOV34S271K | 270 | (243~297) | 175 | 225 | 455 | 300 | 40 | 1.4 | 540 |
| TFMOV34S301K | 300 | (270~330) | 195 | 250 | 500 | 300 | 40 | 1.4 | 600 |
| TFMOV34S331K | 330 | (297~363) | 215 | 275 | 550 | 300 | 40 | 1.4 | 656 |
| TFMOV34S361K | 360 | (324~396) | 230 | 300 | 595 | 300 | 40 | 1.4 | 830 |
| TFMOV34S391K | 390 | (351~429) | 250 | 320 | 650 | 300 | 40 | 1.4 | 830 |
| TFMOV34S431K | 430 | (387~473) | 275 | 350 | 710 | 300 | 40 | 1.4 | 920 |
| TFMOV34S471K | 470 | (423~517) | 300 | 385 | 775 | 300 | 40 | 1.4 | 1000 |
| TFMOV34S511K | 510 | (459~561) | 320 | 410 | 845 | 300 | 40 | 1.4 | 1060 |
| TFMOV34S561K | 560 | (504~616) | 350 | 450 | 930 | 300 | 40 | 1.4 | 1150 |
| TFMOV34S621K | 620 | (558~682) | 395 | 510 | 1020 | 300 | 40 | 1.4 | 1250 |
| TFMOV34S681K | 680 | (612~748) | 420 | 560 | 1120 | 300 | 40 | 1.4 | 1250 |
| TFMOV34S751K | 750 | (675~825) | 465 | 615 | 1235 | 300 | 40 | 1.4 | 1280 |
| TFMOV34S781K | 780 | (702~858) | 485 | 640 | 1290 | 300 | 40 | 1.4 | 1300 |
| TFMOV34S821K | 820 | (738~902) | 510 | 670 | 1355 | 300 | 40 | 1.4 | 1300 |
| TFMOV34S911K | 910 (819~1001) | 550 | 745 | 1500 | 300 | 40 | 1.4 | 1475 | |
| TFMOV34S951K | 950 (855~1045) | 575 | 765 | 1570 | 300 | 40 | 1.4 | 1500 | |
| TFMOV34S102K | 1000 (900~1100) | 625 | 825 | 1650 | 300 | 40 | 1.4 | 1550 | |
| TFMOV34S112K | 1100 | (990~1210) | 680 | 895 | 1815 | 300 | 40 | 1.4 | 1750 |
| TFMOV34S122K | 1200 (1080~1320) | 750 | 1000 | 1980 | 300 | 40 | 1.4 | 1800 | |
Chcesz dowiedzieć się więcej o tym produkcie
