The Varistor Production Equipment Is An Integrated Machine For Testing, Marking, Pin Cutting And Pin Pulling
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan, Guangdong, Chiny |
| Nazwa handlowa: | UCHI |
| Orzecznictwo: | SGS.UL |
| Numer modelu: | LJYT-B |
Zapłata:
| Minimalne zamówienie: | 5000 pne |
|---|---|
| Cena: | negocjowalne |
| Szczegóły pakowania: | cielsko |
| Czas dostawy: | 5-7 dni |
| Zasady płatności: | T/T,Paypal,Western Union,Money gram |
| Możliwość Supply: | 5000 000 000 sztuk miesięcznie |
|
Szczegóły informacji |
|||
| Podkreślić: | varistor production equipment integrated machine,metal oxide varistor testing marking machine,varistor pin cutting pulling machine |
||
|---|---|---|---|
opis produktu

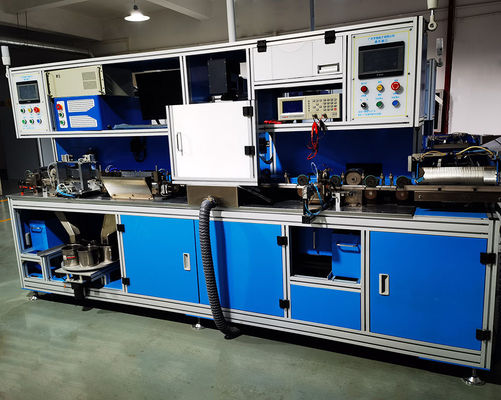

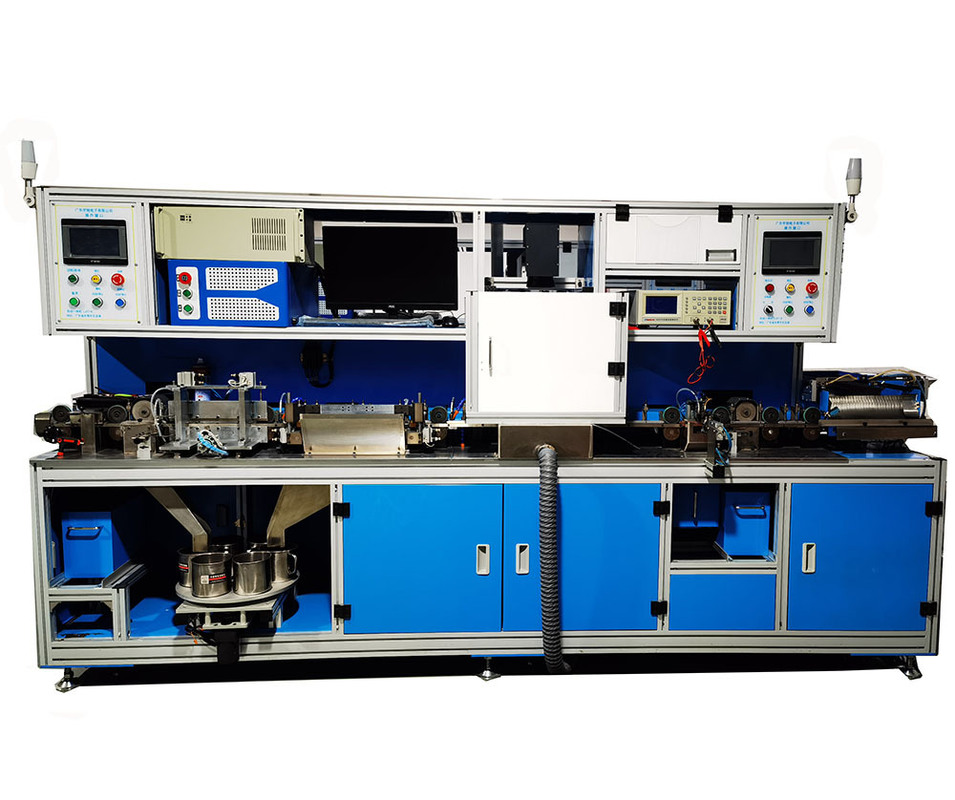

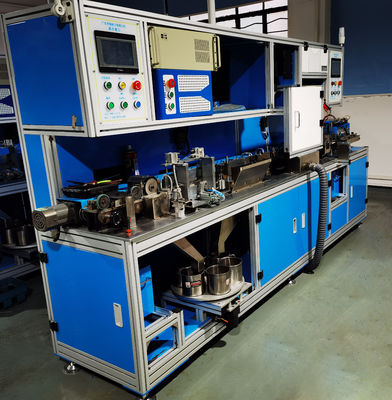

Varistor Testing, Marking, Cutting and Unplugging Integrated Machine
The Varistor Production Equipment is a fully integrated system for comprehensive post-production processing of varistors, combining testing, marking, pin cutting, and pin pulling operations in a single machine.
Model: LJYT-B
Key Features
- Complete integrated solution for varistor post-production processing
- Automated workflow from feeding to final packaging
- Precision testing with automatic defective product removal
- High-speed laser marking system (50W fiber vision marking machine)
- Efficient pin cutting and pulling mechanisms
- Built-in fault alarm and early warning system
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | Single-phase 220V |
| Power | 3KW |
| Air Pressure | 5-6 kg |
| Production Efficiency | 15-18KPCS/H (single-sided testing) |
| Construction | Aluminum profile frame with sky blue painted panel |

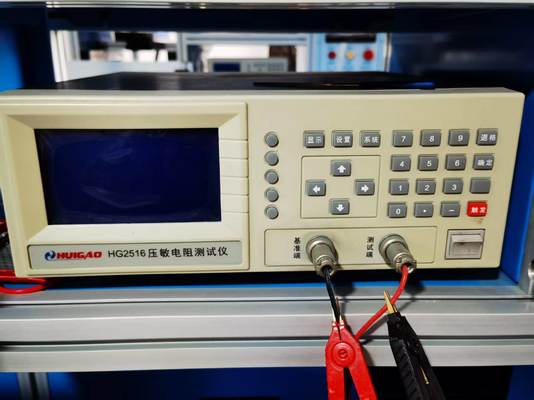

| Test Instrument | Huigao HG2515 |
| Continuous Operation | 24 hours non-stop capability |
Operation Process
- Manual feeding to material trough
- Automatic feeding system
- Tail ring cutting
- Test Station 1 (sliding test with automatic defective product removal)
- Single-sided laser marking
- Pin pulling, counting and packaging
- Insulation pin alignment
- Short pin cutting, counting and packaging (circular knife cutting)
- Waste wire pulling mechanism
- 10-position turntable material collection
Laser Marking System Specifications
- Laser Power: 50W (special wavelength customization available)
- Scanning Speed: ≥300 pieces per minute
- Marking Range: 400mm * 450mm
- Passage Width: 14.5mm (Y-direction paper tape width)
- Positioning Tape Spacing: 320±1.5mm
- Quality Assurance: Static marking with no deformation, missing characters, double images, or deviation
Mechanical Features
- Sliding measurement design with adjustable test time
- Product positioning by fiber optic amplifier with reversible lift control
- Defective product removal via mechanical claw design (dual cylinder system)
- Vacuum suction feeding with push plate output material collection
- Motor crankshaft circular operation for automatic feeding
- Photoelectric sensing control for precise operation
- Upper/lower circular knife cross design for tail cutting (adjustable knife seat)
