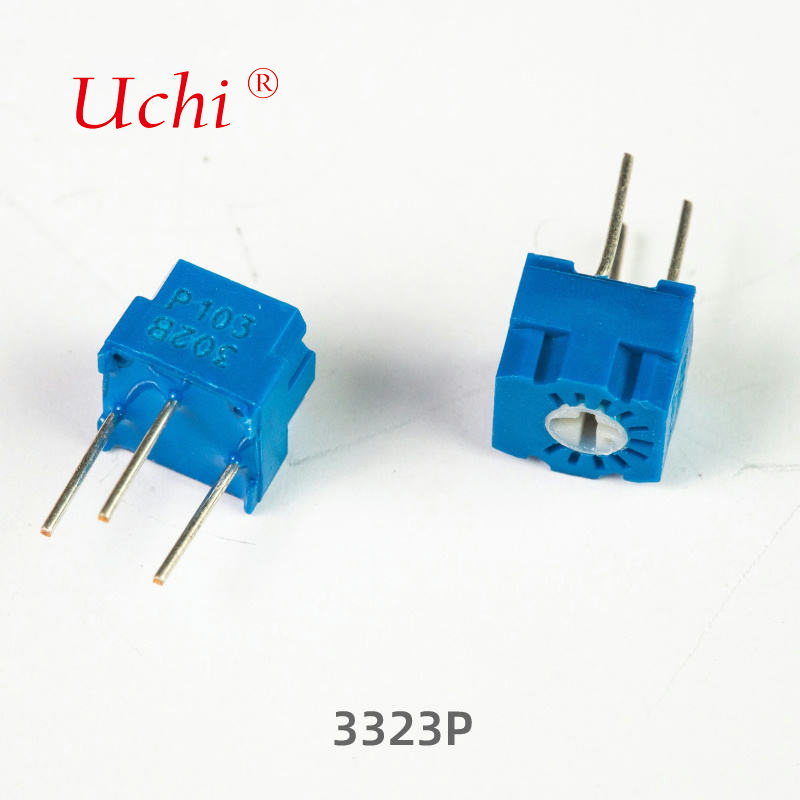

3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan, Guangdong, Chiny |
| Nazwa handlowa: | Uchi |
| Orzecznictwo: | SMC |
| Numer modelu: | 3323P |
Zapłata:
| Minimalne zamówienie: | 100pcs |
|---|---|
| Cena: | negocjowalne |
| Zasady płatności: | T/T, PayPal, Western Union, MoneyGram |
| Możliwość Supply: | 50000000 pCS miesięcznie |
|
Szczegóły informacji |
|||
| Zakres oporności nominalnej: | 5 tys | Moc znamionowa: | 0,5 W (maks. 300 V) |
|---|---|---|---|
| Skuteczne podróże elektryczne: | ≥200° | Całkowita podróż mechaniczna: | 270°±10° |
| Moment zatrzymania: | ≥50mN.m | Początkowy moment obrotowy: | ≤20mNm |
| TCR: | ±250*10-6/°C | Zakres temperatur: | -55°C~+125°C |
| Tolerancja oporu: | ± 10% | Rozmiar / wymiar: | 6.8*6.8MM |
| Podkreślić: | single-turn metal potentiometer,precision adjustable resistor 5k,glass glaze fine-tuning potentiometer |
||
opis produktu
3323P Single-turn Metal Glass Glaze Fine-tuning Potentiometer 5k Precision Adjustable Resistor
The 3323P is a precision adjustable potentiometer featuring metal glass glaze technology. Designed for fine-tuning applications, this blue-colored component is rotated with a screwdriver and features three legs. Its robust construction makes it ideal for circuit protection devices and industrial controllers.
Key Features
- Three-leg design for screwdriver adjustment
- Distinctive blue color for easy identification
- Dual adjustment positions (high/low resistance) for circuit control
- Metal glass glaze construction for superior heat, corrosion, and impact resistance
- High-precision fine-tuning capability
- Excellent accuracy and stability for reliable circuit operation
- Wide compatibility with electronic equipment
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 500V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.5W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 270°±10° |
| Starting torque | ≤20mN.m |
| Stoper torque | ≥50mN.m |
| Standard package | 50 pcs /tube |
Product Size
Application Areas
This potentiometer is widely used in instrumentation, electrical appliances, audio equipment, communications, medical devices, security products, industrial control systems, televisions, telephones, office automation equipment, and information/communication devices.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
