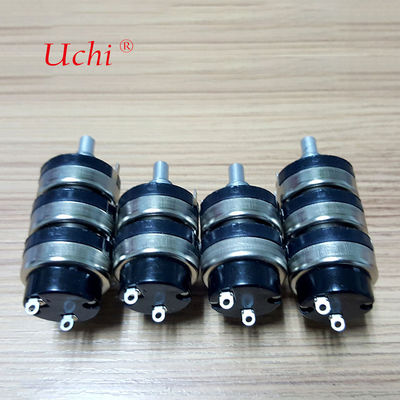

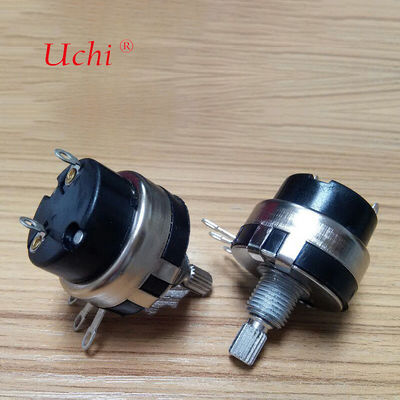

WTH118 Waterproof Improved Precision Potentiometer With Switch
Szczegóły Produktu:
| Miejsce pochodzenia: | Dongguan, Guangdong, Chiny |
| Nazwa handlowa: | Uchi |
| Orzecznictwo: | SMC |
| Numer modelu: | WTH118 |
Zapłata:
| Minimalne zamówienie: | 100pcs |
|---|---|
| Cena: | negocjowalne |
| Zasady płatności: | T/T, PayPal, Western Union, MoneyGram |
| Możliwość Supply: | 50000000 pCS miesięcznie |
|
Szczegóły informacji |
|||
| Ogólny zakres rezystancji: | 50Ω - 2MΩ (błąd ±20%) | Ocena mocy: | B Taper 0,5 W, inne 0,25 W |
|---|---|---|---|
| Opór szczątkowy: | Zacisk 1-2/2-3 ≤20Ω MAKS | Maksymalne napięcie robocze: | Stożek liniowy BAC 500V, inne stożki AC 250V |
| Hałas suwaka (patrz JIS): | ≤47mV MAKS | Odporność na izolację: | ≥100MΩ MIN przy napięciu stałym 500 V |
| Wytrzymywane napięcie (obudowa zacisków): | 500 V, AC (jedna minuta) | Moc: | 0,05 W |
| Całkowity kąt obrotu: | 300°±10° | Skuteczne podróże elektryczne: | 230°±3° |
| Przełącz kąt: | 50°±10° | Wodoodporna ocena: | IP67 |
| Podkreślić: | waterproof precision potentiometer with switch,improved precision potentiometer waterproof,potentiometer with switch waterproof |
||
opis produktu
- Overall resistance range: 50Ω - 2MΩ (Error ±20%)
- Power rating: B Taper 0.5W, Others 0.25W
- Residual resistance: Terminal 1-2/2-3 ≤20Ω MAX
- Max operation voltage: Linear taper BAC 500V, other tapers AC 250V
- Slider noise (Refer to JIS): ≤47mV MAX
- Insulation resistance: ≥100MΩ MIN at D.C 500 volts
- Withstanding voltage (Terminal-case): 500V, AC (one minute)
| Taper | Test point position | V1-2/V1-3 (%) | V2-3/V1-3 (%) |
|---|---|---|---|
| A | 180° | 10-30% | |
| B | 150° | 40-60% | |
| C | *180° | 10-30% | |
| D | 150° | 2-15% | |
| W | 90±5° | 5-15% | |
| 150° | 40-60% | ||
| 210±5° | 85-95% |
- Overall rotational angle: 300°±10°
- Effective electrical travel: 230°±3°
- Switch angle: 50°±10°
- Waterproof grade: IP67
- Operation torque: 100gf.cm-200gf.cm (rotational speed 60°/1 sec)
- Rotational life: More than 100,000 cycles
- All items meet or exceed JIS C6443 standards
- Operating temperature: -10℃ to +60℃
- Storage temperature: -30℃ to +70℃
